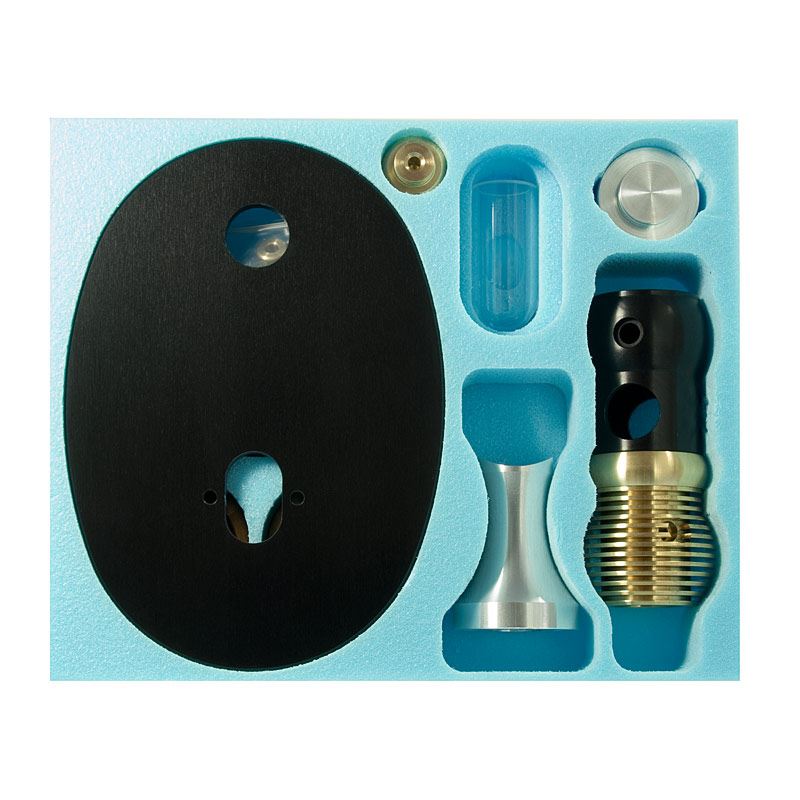

Tube Stirling engine (KIT)

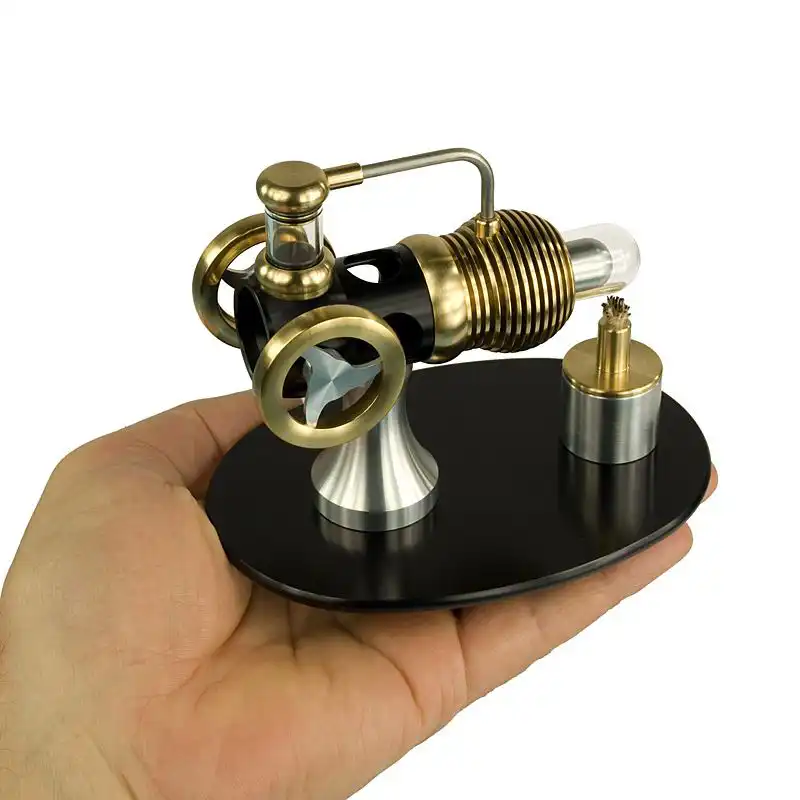

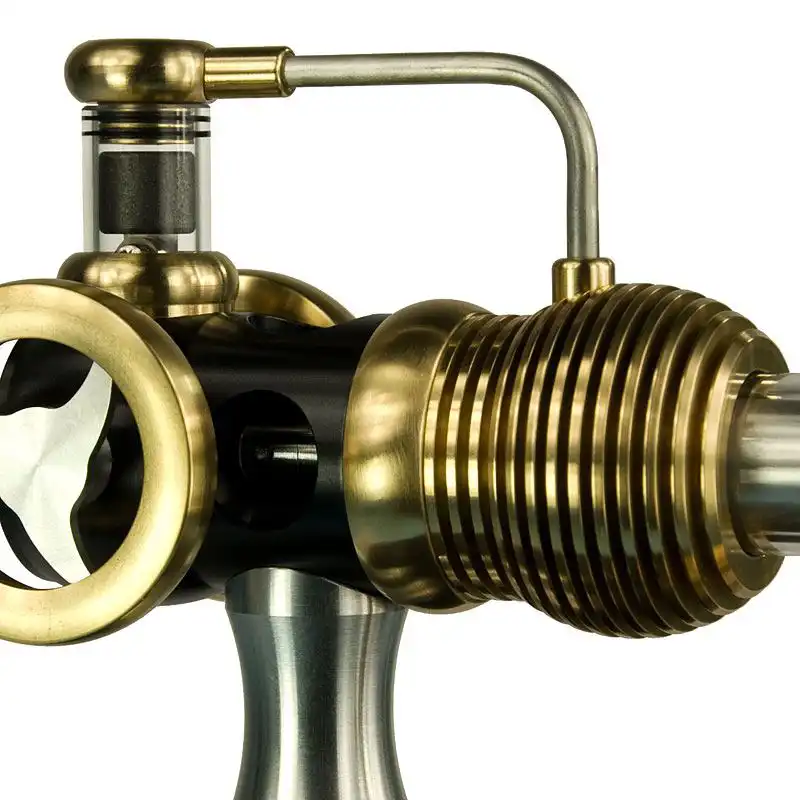

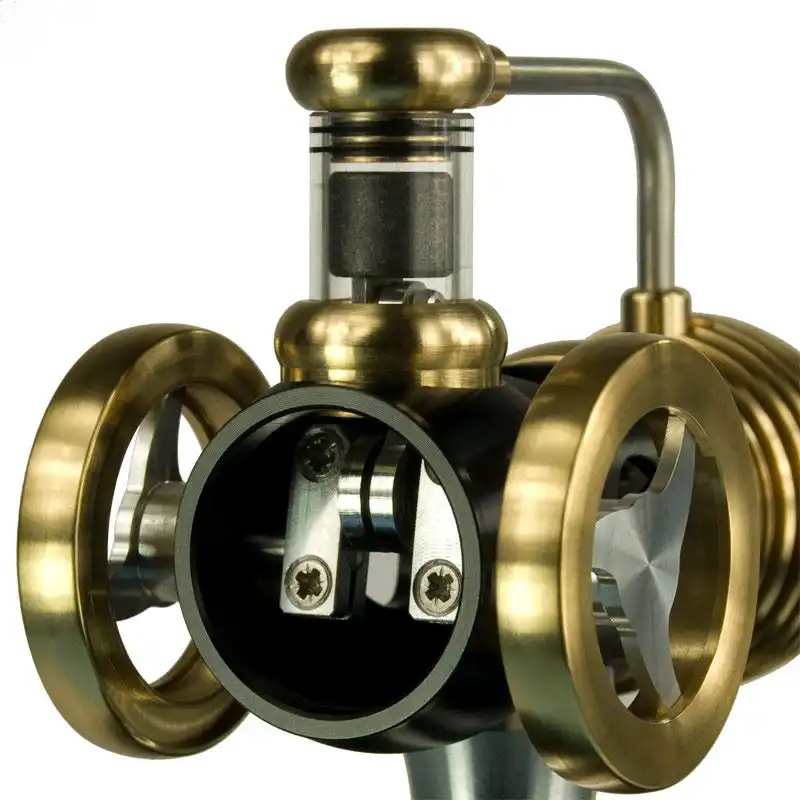

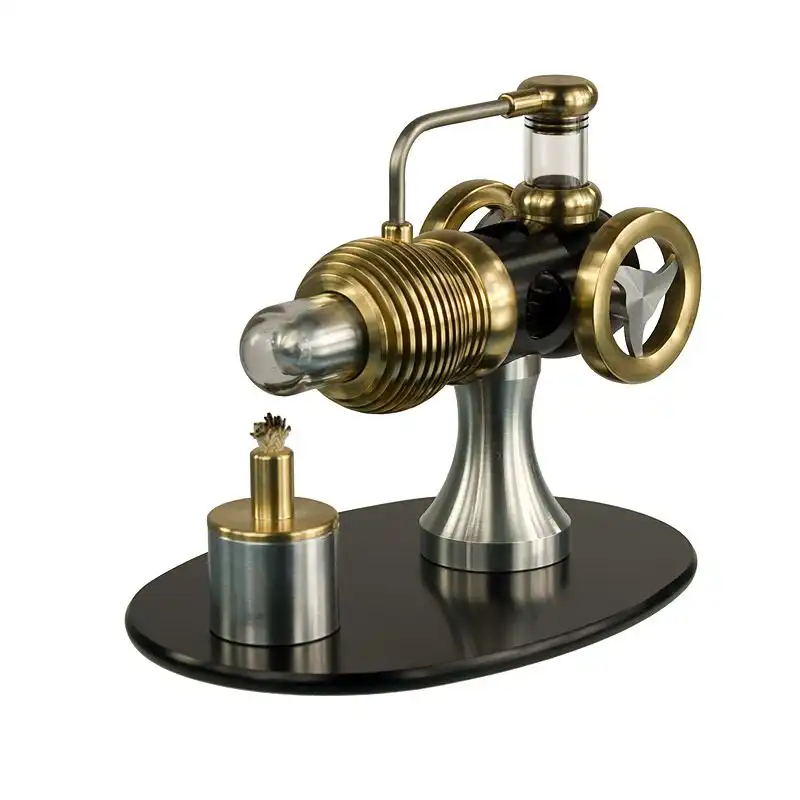

This beautiful compact engine will run at over 2000rpm on a tiny methylated spirit flame. We call it a tube Stirling engine because it uses a tube to move air between the power cylinder and the displacer cylinder. This Stirling engine is a Gamma-type engine but the tube allows the power piston stroke to be easily offset 90 degrees rather than use of a crank. The glass dome is the hot side of the Stirling engine with the brass heatsink being the cold side.

Design features:

  • Borosilicate glass cylinder and pure graphite piston
  • High temperature Viton O ring seals
  • Oiled and sealed stainless steel ball race bearings
  • Operates on Methylated spirit (or denatured alcohol)
  • Precision engineered and hand built in England
  • Overall height: 100mm (3.93 inches)
  • Base dimensions: 87mm X 160mm (3.42 x 6.29 inches)
  • Flywheel diameter: 33mm (1.3 inches)
  • Material: aluminium, stainless steel, brass

video play button

Price: £91.00 in

We ship worldwide

Ask us a question

Ideal for ages 14+.
