Super Precision Gyroscope (without gimbals)

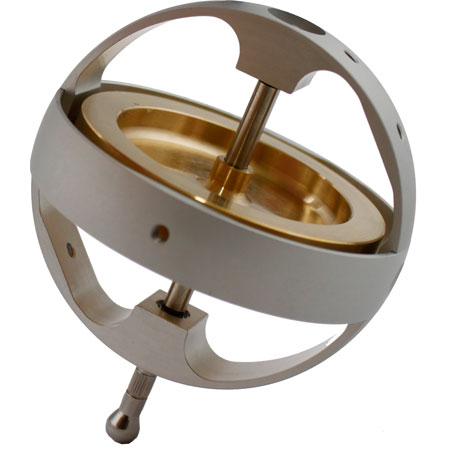

Super gyroscope on its own

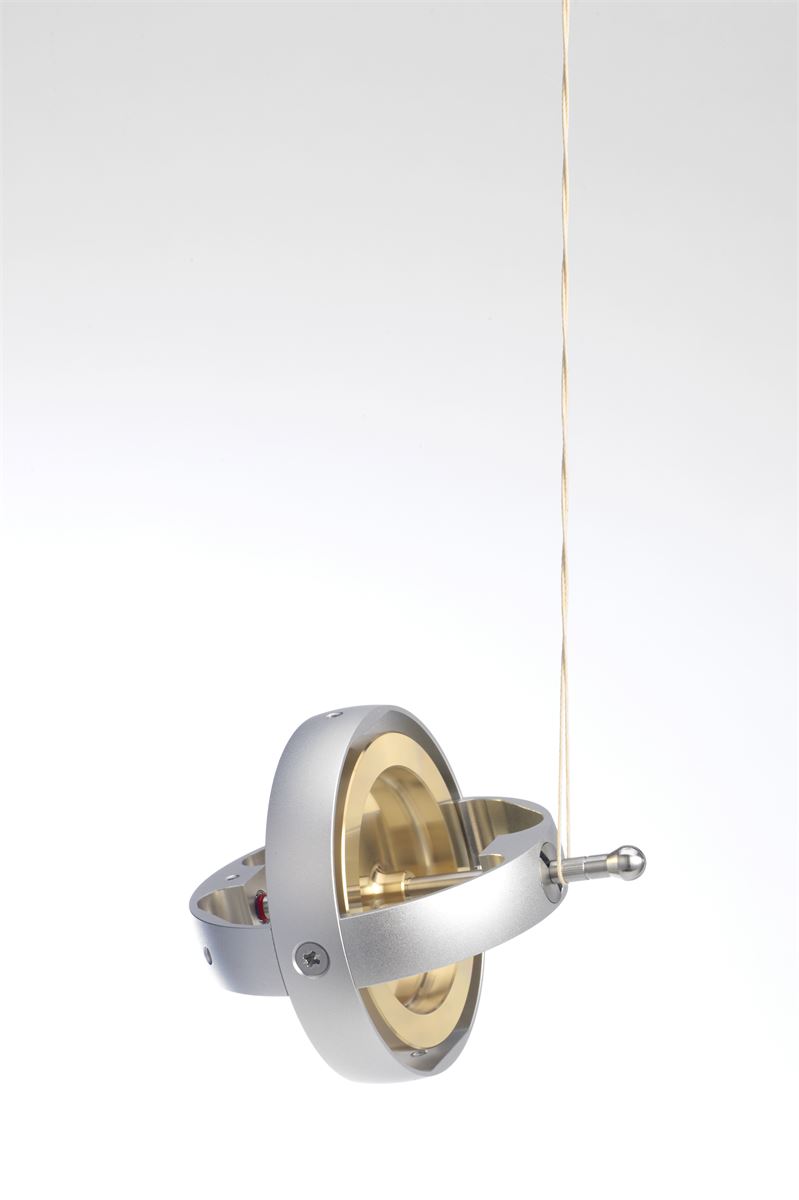

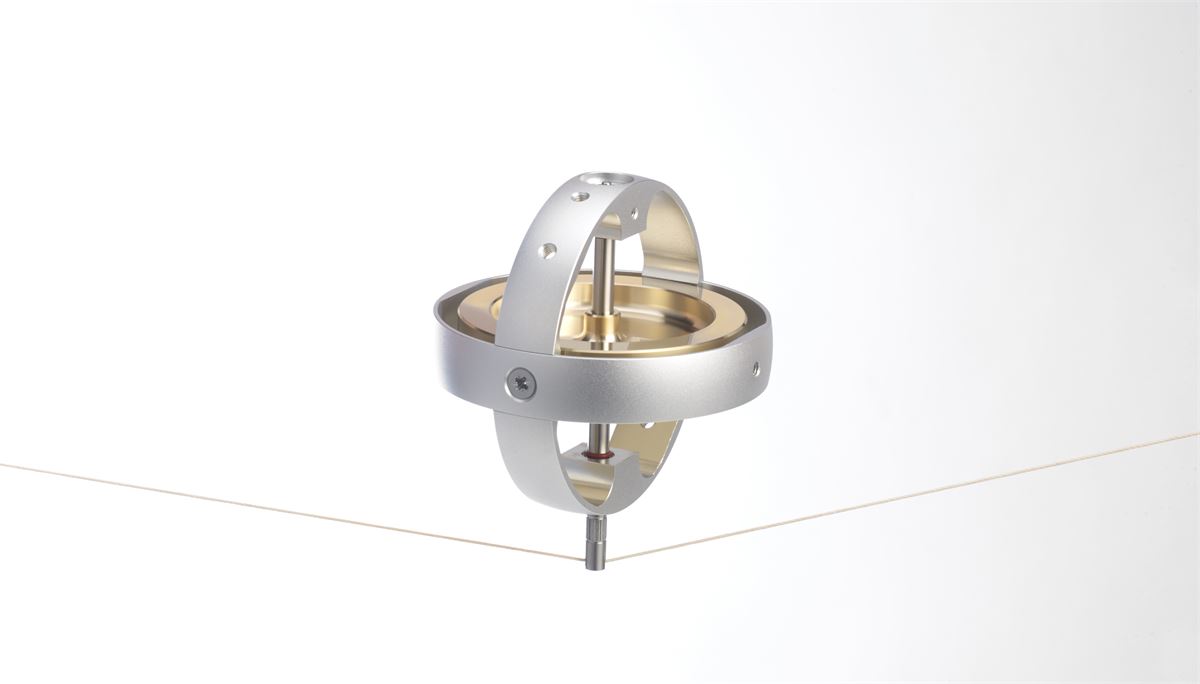

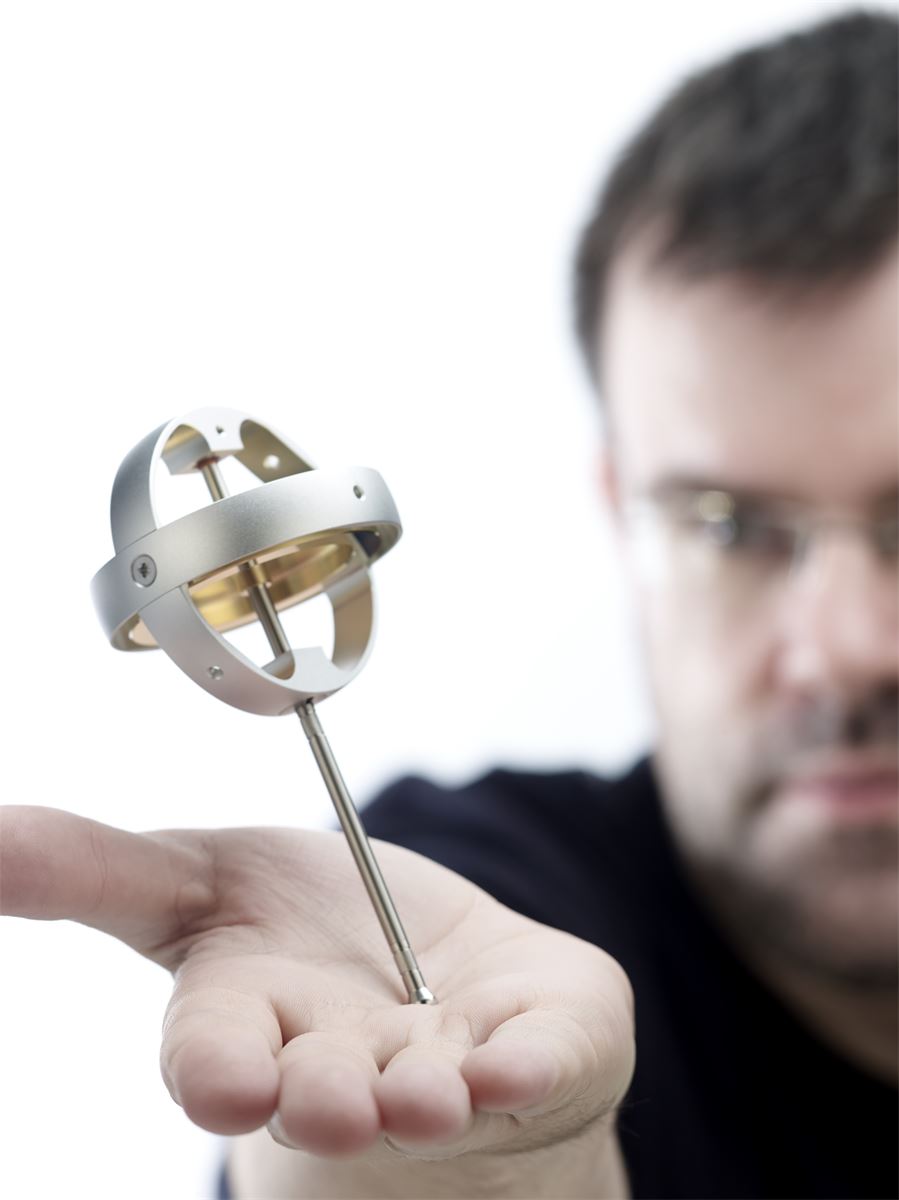

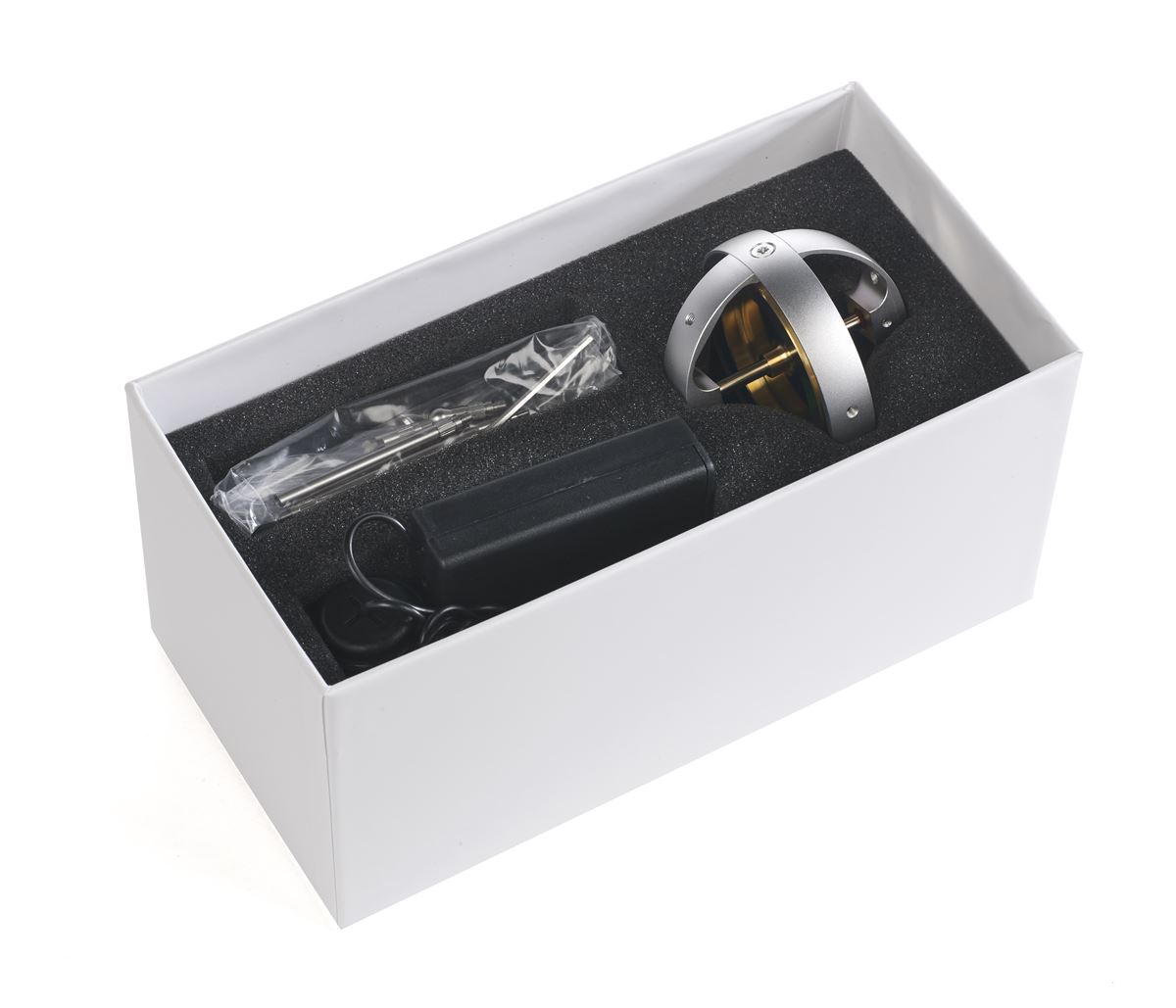

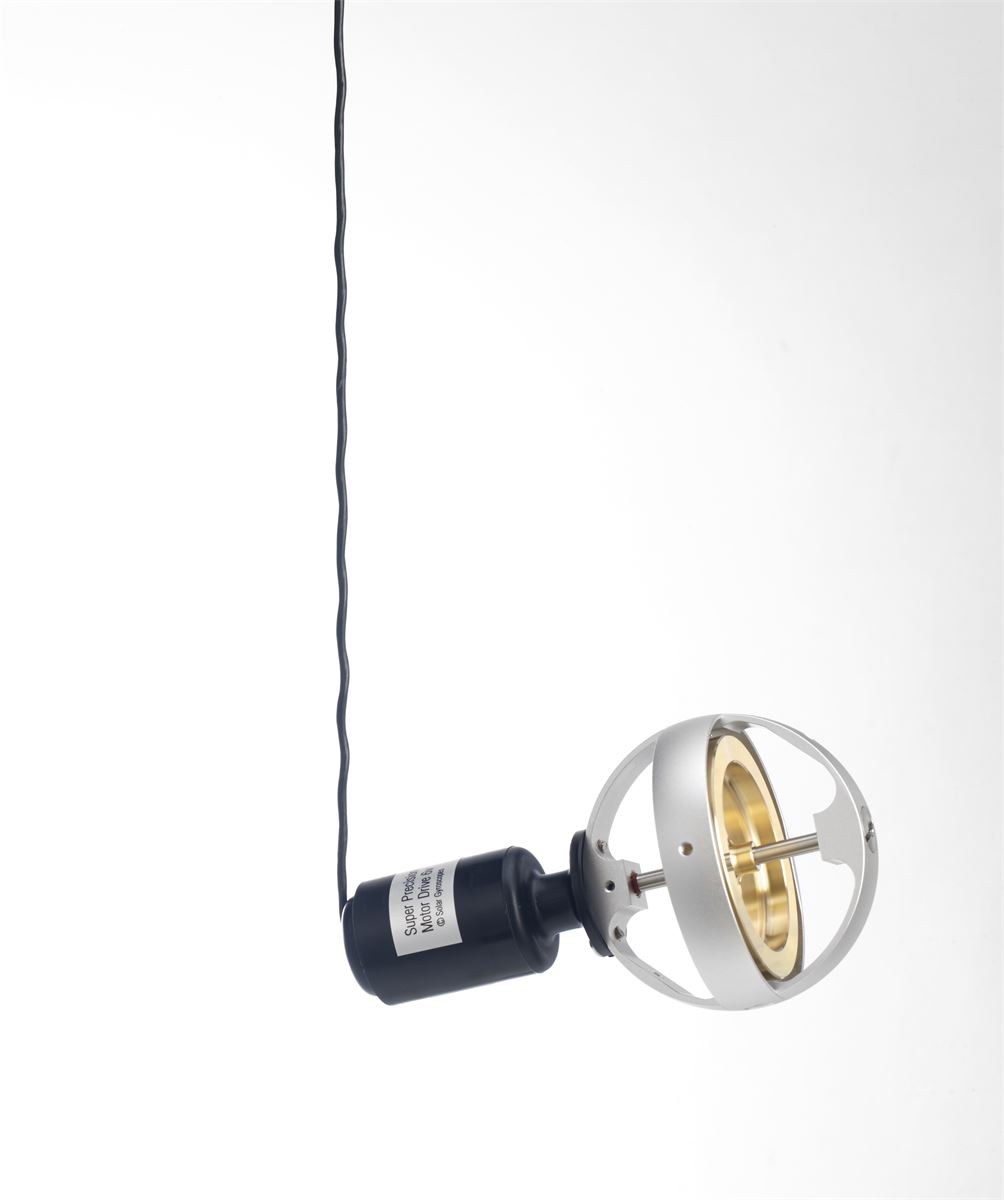

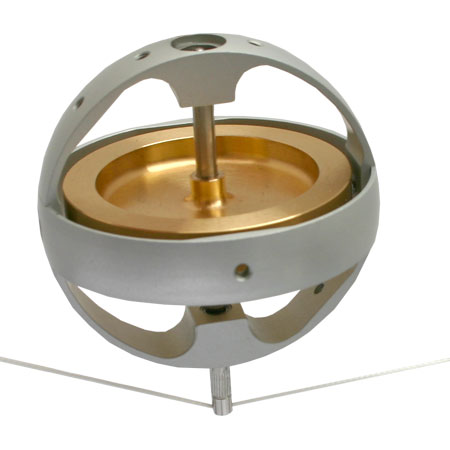

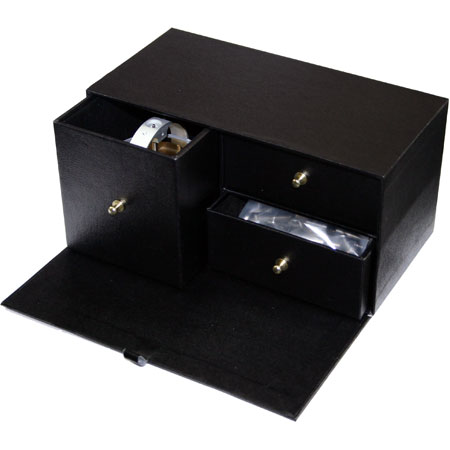

Super gyroscope precessing while drive by electric motor      Super gyroscope with most of the parts it comes with      Super gyroscope in its box      Super gyroscope box      Super gyroscope balancing on string      Super Precision Gyroscope balancing on hand

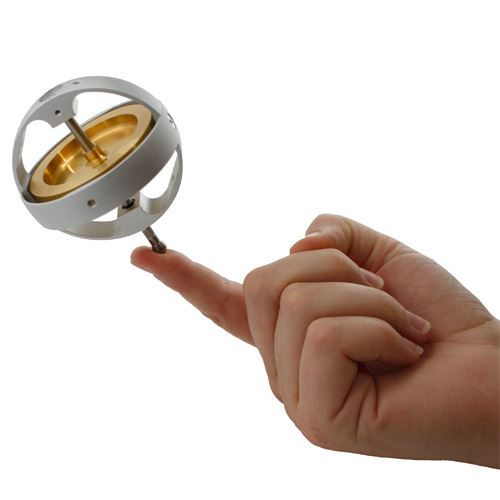

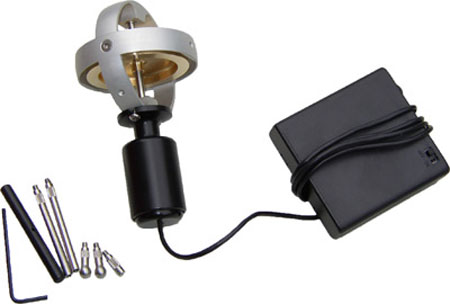

Super Precision Gyroscope with parts supplied      Super gyroscope balancing on a finger      Super gyroscope being started with an electric motor      Super gyroscope on its own

The Super Precision Gyroscope has been designed and built to the highest precision from the very start, made from solid brass with a light-weight aluminium frame. Carefully chosen stainless-steel miniature ball bearings allow it to run smoothly and almost silently for an amazingly long time. The gyroscope comes with a number of attachments allowing numerous configurations to perform scientific, educational or simply mesmerising scientific experiments.

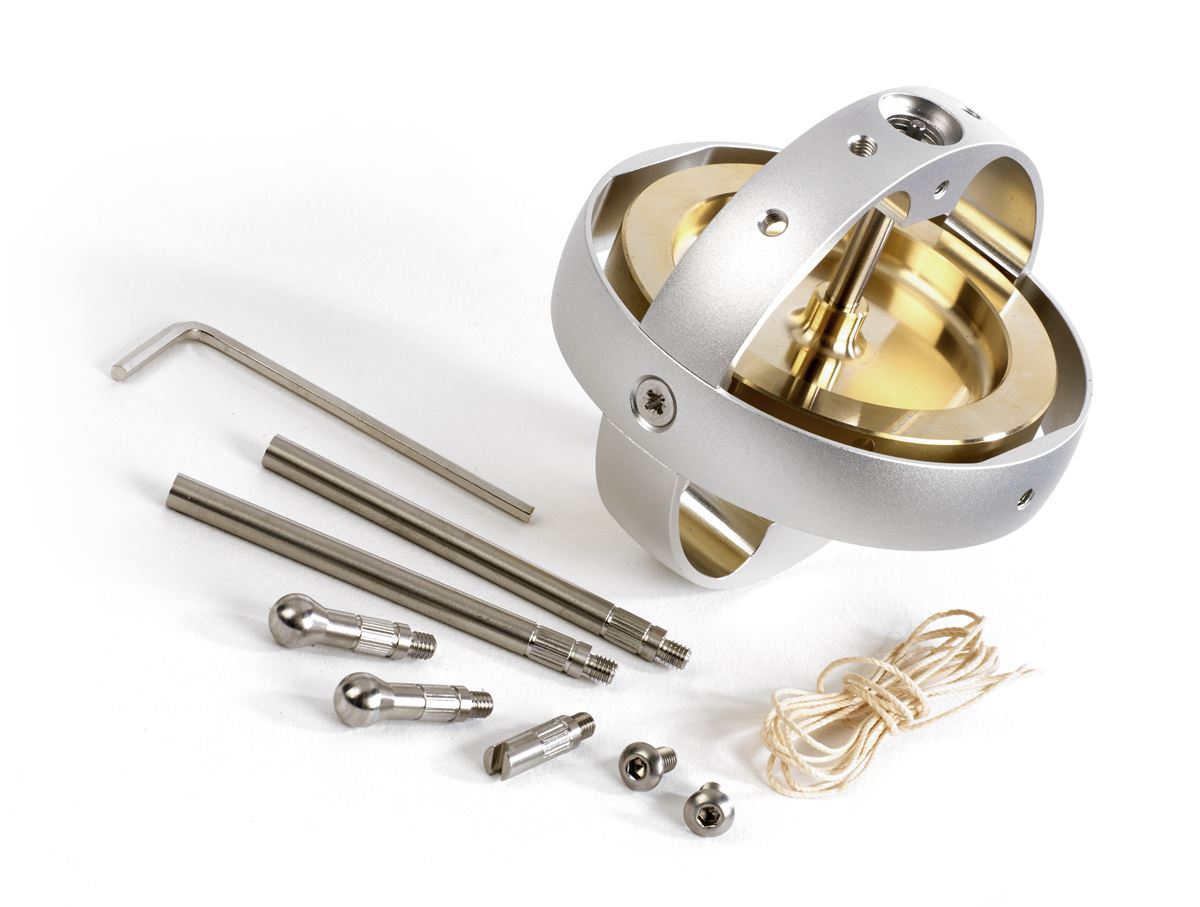

The gyroscope comes with 2 x 50 mm long stainless steel extension rods, 2 x ball ends, 1 x slotted end. The rods when screwed together will extend 100mm, they can be screwed in other positions to create various experiments. There are 7 places on the gyroscope that the attachments can be screwed into.

The modular design allows for numerous tricks and experiments including demonstrating gyroscopic precession and nutation. The optional gimbals kit add-on dramatically expands the range of experiments turning into an ideal educational tool. Due to popular requests we also created a rate kit add-on which allows pilots to understand how a rate gyroscope works.

  electric motor

SUPER FAST 12,000rpm Electric motor start

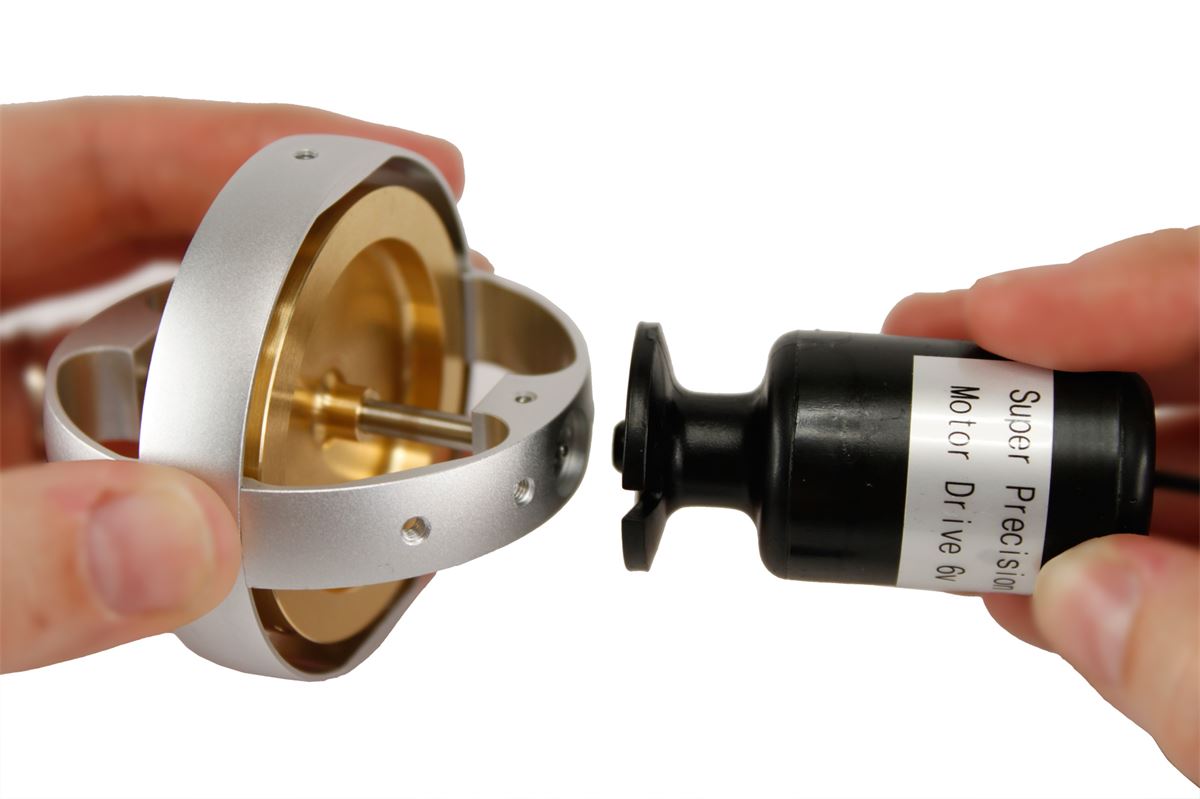

The included Quickstart® electric motor spins the gyroscope effortless up to an impressive 12,000 revolutions per minute. The motor can be fastened to the gyroscope with two screws providing hours of continuous use or it can be used to briefly start it and quickly detach, allowing you to perform experiments for as long as 25 minutes. The electric motor makes it easy and quick to start gyroscope, with speeds you would struggle to achieve with string pull start. The motor has its own battery pack that requires 4 AA batteries. Batteries are not included.

  balancing gyroscope

SUPER SMOOTH computer balanced disk

If a spinning object is unbalanced it will vibrate. A gyroscope needs to be balanced, just like a wheel on a car is balanced to ensure a smooth ride. The super gyroscope disk is made from brass and machined to microns precision, ensuring the disk is incredibly symmetrical and well balanced. Despite the brass looking perfect on the surface, it is an alloy, made up of a number of other metals and these metals are not always evenly dispersed resulting in a very slight non-uniform weight distribution. To correct this, the disk is then computer balanced to an impressive 250th of a gram accuracy! Thus giving the gyroscope a highly balanced, super smooth feel, longer spin and even quieter operation.

  picture of stopwatch

SUPER SUSTAINED spin times of up to 25 minutes

Carefully chosen miniature ultra-low friction stainless-steel ball bearings allow it to run smoothly and almost silently for up to 25 minutes, allowing you to perform the experiments and tricks you want to do without having to reattach the electric motor. Please note: Some experiments and tricks remove quite a bit of energy from the gyroscope. This will reduce spin times.

Click here for VIDEO CLIPS of the gyroscope in action

  • Quickly and easily started with the INCLUDED Quickstart® electric motor
  • 12,000 revolutions per minute (Faster than any pull cord gyroscope)
  • High speed miniature ball bearings
  • Computer balanced to an impressive 250th of a gram accuracy
  • Latest version has had the 'Spin time' (without motor) increased to 25 minutes from 7 minutes.
  • Very high precision manufacture
  • Interchangeable attachments for different experiments
  • Electric motor can be detached
  • SOLID brass 'disk'
  • Stainless steel shaft
  • Ideal for demonstrations at colleges and universities
  • Efficient motor allows hours of use
  • Can be used as executive 'toy'
  • Designed and built in Britain

Gyroscope Dimensions
Total Weight: 345g
Gyroscope weight without motor : 145g
Weight of brass disk alone (with shaft) : 112g
Aluminium casing, bearings and shaft weigh : 33g
Outer frame diameter: 62.5mm
Brass disk diameter: 53mm
Brass disk thickness: 12mm
Motor length: 58.2mm
Motor diameter (at largest point): 28.1mm
Electrical characteristics
Motor Amps (at start up): 2.5 amps
Motor Amps (at full rpm): 0.5 amps
Motor/gyroscope speed: 12,000 rpm~
Motor Voltage with standard batteries: 5.8 volts
Nominal Motor Voltage: 6 volts
Batteries:Four 'AA' batteries
(batteries not included *)
* We don’t include batteries because this increases postage weight/cost
(often more than the batteries). Can delay parcels due to recent strict security
on air mail. Also known to delay/confuse customs clearance.

To compare the all the gyroscopes on the website visit this page

video play button video play button video play button video play button

Price: £95.00 in

We ship worldwide

Ask us a question

Amount :

tick to show in stock IN STOCK
Ready to Ship

Ideal for ages 14+.
